Three phase frequency inverters IP20
Three phase frequency inverters IP20
Three phase frequency inverters need a power supply of 3 x 400 VAC and output to the fan three phases by 400 VAC. The power of these frequency inverters is from 0,75 kW to 110 kW. These frequency inverters with IP20 protection have a standard housing that reliably protects against moisture and dust. We provide two producers CANWORLD and EURA DRIVES frequency inverters. CANWORLD three-phase frequency inverters have only EMI filters, but as an advantage, you could take out the LCD display and install it in another place. EURA DRIVES frequency inverters three phase frequency inverters have integrated EMC filters.
Three phase frequency inverters with EMI filter

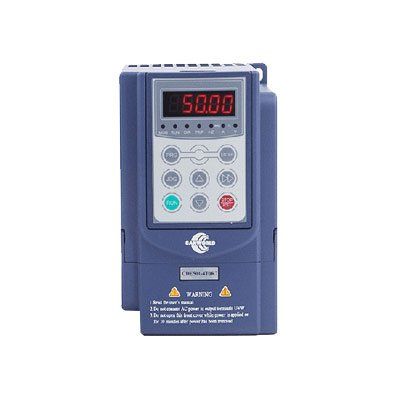

CANWORLD CDE501 mini-series frequency inverters are designed for speed control of asynchronous motors, fans, and pumps. These are very compact frequency inverters for use in control cabinets. Their protection class is IP20. The supply voltage of three phase frequency inverters is 3 x 400 VAC, and the output voltage is 3 x 400 VAC. Their power is from 0.75 kW to 2.2 kW. There is an option to remove the LCD display from the frequency inverter or install it separately in another place by connecting it via a cable.
Features
- Supply voltage 3 x 400 VAC, 50 – 60 Hz
- Output 3 x 400 VAC
- Relay output 230 VAC / 0,5 A
- Modbus communication via RS485
- With built in EMI (electromagnetic interference) filter
- Protection class IP20
| Product code | Power, kW | Current, A | Dimensions, mm |
|---|---|---|---|
| CDE501-4T0R7 | 0,75 | 2,6 | 145 x 86 x 120 |
| CDE501-4T1R5 | 1,5 | 3,8 | 145 x 86 x 120 |
| CDE501-4T2R2 | 2,2 | 5,1 | 145 x 86 x 120 |
Three phase frequency inverters with EMI filter
EURA DRIVES frequency inverters are designed for speed control of asynchronous motors, fans, and pumps. The built-in EMC filter, PID controller and Modbus RTU allow this inverter to be used in various industries. Their protection class is IP20. The supply voltage of three-phase frequency inverters is 3 x 400 VAC, and the output voltage is 3 x 400 VAC. Their power is from 0.75 kW to 110 kW. These types of frequency inverters are easy and quick to mount on a DIN rail or directly on the mounting plate in the control cabinet. It is easy to set up and save parameters when connecting to a PC and use free EuraDV software and Eura Copy stick.
Features
- Supply voltage 3 x 400 VAC, 50 – 60 Hz
- Output 3 x 400 VAC
- Relay output 230 VAC / 3 A
- Modbus communication via RS485
- Integrated EMC filter
- Protection class IP20
| Product code | Power, kW | Current, A | Dimensions, mm |
|---|---|---|---|
| E600-0007 T3 | 0,75 | 2 | 88 X 145 X 149 |
| E600-0015 T3 | 1,5 | 4 | 88 X 145 X 149 |
| E600-0022 T3 | 2,2 | 6 | 107 X 163 X 180 |
| E600-0030 T3 | 3 | 7,6 | 107 X 163 X 180 |
| E600-0040 T3 | 4 | 9 | 107 X 163 X 180 |
| E810-0075 T3 | 7,5 | 17 | 138 x 152 x 235 |
| E810-0110 T3 | 11 | 23 | 156 x 170 x 265 |
| E810-0150 T3 | 15 | 32 | 156 x 170 x 265 |
| E810-0185 T3 | 18,5 | 38 | 205 x 196 x 340 |
| E810-0220 T3 | 22 | 44 | 205 x 196 x 340 |
| E810-0300 T3 | 30 | 60 | 205 x 196 x 340 |
| E810-0370 T3 | 37 | 75 | 265 x 235 x 435 |
| E810-0450 T3 | 45 | 90 | 265 x 235 x 435 |
| E810-0550 T3 | 55 | 110 | 315 x 234 x 555 |
| E810-0750 T3 | 75 | 150 | 360 x 265 x 630 |
| E810-0900 T3 | 90 | 180 | 410 x 300 x 765 |
| E810-1100 T3 | 110 | 220 | 410 x 300 x 765 |
