Three phase frequency inverters IP20
Three phase frequency inverters IP20
Three-phase frequency inverters require a 3 x 400 VAC power supply, ensuring stable and reliable operation in industrial and commercial systems. The output voltage to the fan is also three-phase at 400 VAC, making them ideal for higher-power equipment such as industrial motors, fans, or pumps. These inverters provide smooth motor speed control, efficient energy use, and extended equipment lifespan.
The IP20 protection rating for three-phase frequency inverters offers reliable protection against dust and moisture, making them suitable for use in control cabinets. The power range of these inverters spans from 0.75 kW to 110 kW, catering to a wide range of needs, from smaller systems to very large industrial applications.
We offer three-phase frequency inverters from two trusted manufacturers:
CANWORLD and
EURA DRIVES. CANWORLD three-phase frequency inverters feature a removable LCD display, which can be conveniently installed in a different location, providing flexible and user-friendly control. EURA DRIVES three-phase inverters include an integrated EMC filter, which further reduces interference and ensures reliable performance even in challenging environments.
These frequency inverters are an economical and reliable solution, designed to meet the needs of various industries while delivering optimal efficiency and durability.
Mini series three phase frequency inverters
The CDE501 mini-series three-phase frequency inverters provide a reliable solution for speed control of asynchronous motors, fans, and pumps. With a compact design, they are easy to install in control cabinets where space is limited. These frequency inverters have an IP20 protection rating, ensuring dependable protection against dust and moisture in controlled environments.
These inverters require a 3 x 400 VAC power supply and deliver a 3 x 400 VAC output voltage. Their power range spans from 0.75 kW to 2.2 kW, making them suitable for small to medium-power equipment. They offer excellent speed and power control, enabling process optimization, reduced energy consumption, and extended equipment lifespan.
The CDE501 three-phase frequency inverters feature a unique capability: the LCD screen can be detached and mounted in another location using a special cable. This functionality provides enhanced flexibility and convenience, especially in complex installations requiring remote control.
Additionally, the inverters are equipped with a Modbus interface via RS485, allowing seamless integration into automation systems. This enables remote monitoring and control of parameters, enhancing their versatility in industrial applications.
Features
- Input Voltage: 3 x 400 VAC, 50–60 Hz
- Output Voltage: 3 x 400 VAC
- Relay Output: 230 VAC / 0.5 A
- Modbus Interface: RS485
- Integrated EMI Filter
- Protection Class: IP20
These frequency inverters are not only compact and functional but also user-friendly and efficient. They enable process optimization, energy savings, and improved equipment performance. The three-phase CDE501 inverter is a reliable choice for those seeking an economical and high-quality solution that ensures long-term operation.
| Product code | Power, kW | Current, A | Dimensions, mm |
|---|---|---|---|
| CDE501-4T0R7 | 0,75 | 2,6 | 145 x 86 x 120 |
| CDE501-4T1R5 | 1,5 | 3,8 | 145 x 86 x 120 |
| CDE501-4T2R2 | 2,2 | 5,1 | 145 x 86 x 120 |

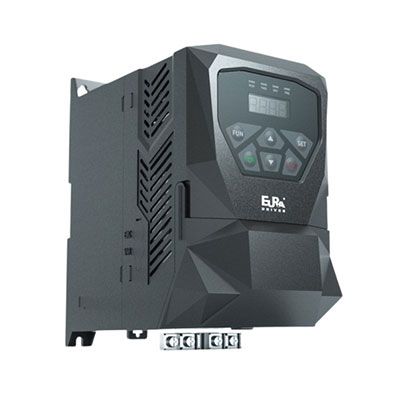

Three phase frequency inverters with EMI filter
EURA DRIVES frequency inverters are designed for speed control of asynchronous motors, fans, and pumps, ensuring smooth operation and energy savings. They are widely used across various industries, including automation, heating, ventilation, and air conditioning (HVAC), water supply, chemical, and manufacturing sectors. With an integrated EMC filter, these inverters reduce electromagnetic interference and provide stable performance even in demanding conditions.
Additional functionality, such as the PID controller, allows for automatic process regulation, ensuring precision and efficiency. The Modbus RTU interface via RS485 enables seamless integration of the inverters into industrial control systems, allowing real-time monitoring and parameter adjustments.
The IP20 protection rating ensures safe installation of these inverters in control cabinets. Their straightforward mounting on a DIN rail or directly onto a mounting plate ensures quick and efficient setup. Moreover, using the free EuraDV software and Eura USB key, the inverter parameters can be easily configured, tailored to specific needs, and saved, ensuring smooth operation.
Features
- Input Voltage: 3 x 400 VAC, 50–60 Hz
- Output Voltage: 3 x 400 VAC
- Relay Output: 230 VAC / 3 A
- Modbus Interface: RS485
- Integrated EMC Filter
- Protection Class: IP20
Why Choose EURA DRIVES Frequency Inverters?
EURA DRIVES frequency inverters are versatile, functional, and easily adaptable solutions for a wide range of industrial applications. They combine high quality, reliability, and user-friendly operation, making them an excellent choice for any industrial need.
| Product code | Power, kW | Current, A | Dimensions, mm |
|---|---|---|---|
| E600-0007 T3 | 0,75 | 2 | 88 X 145 X 149 |
| E600-0015 T3 | 1,5 | 4 | 88 X 145 X 149 |
| E600-0022 T3 | 2,2 | 6 | 107 X 163 X 180 |
| E600-0030 T3 | 3 | 7,6 | 107 X 163 X 180 |
| E600-0040 T3 | 4 | 9 | 107 X 163 X 180 |
| E810-0075 T3 | 7,5 | 17 | 138 x 152 x 235 |
| E810-0110 T3 | 11 | 23 | 156 x 170 x 265 |
| E810-0150 T3 | 15 | 32 | 156 x 170 x 265 |
| E810-0185 T3 | 18,5 | 38 | 205 x 196 x 340 |
| E810-0220 T3 | 22 | 44 | 205 x 196 x 340 |
| E810-0300 T3 | 30 | 60 | 205 x 196 x 340 |
| E810-0370 T3 | 37 | 75 | 265 x 235 x 435 |
| E810-0450 T3 | 45 | 90 | 265 x 235 x 435 |
| E810-0550 T3 | 55 | 110 | 315 x 234 x 555 |
| E810-0750 T3 | 75 | 150 | 360 x 265 x 630 |
| E810-0900 T3 | 90 | 180 | 410 x 300 x 765 |
| E810-1100 T3 | 110 | 220 | 410 x 300 x 765 |
